Quick Details

  • Condition: New
  • Type: Hollow Block Making Machine
  • Brick Raw Material: Concrete
  • Processing: Brick Molding Machine
  • Method: Platform vibration
  • Automatic: Yes
  • Capacity: 3200-4560pcs/day
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: HF
  • Model Number: QT4-26 manual block making machine
  • Voltage: 220V-440V
  • Power: 17.85kw
  • Dimension(L*W*H): 2060*1730*2580
  • Certification: ISO9001&CE
  • Warranty: 1Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: Red or optional
  • Weight: 2300kg
  • Pallet size: 880*480
  • Molding cycle: 26-35s
  • Rated Pressure: 16MPA
  • Host machine power: 17.85kw
  • Vibration Form: Platform vibration
  • Mixer: JQ350
  • Origin: China
  • Mold: One mold for free

Packaging & Delivery

Packaging Details wooden or according buyer's requirement
Delivery Time Shipped in 20 days after payment
Our Company

Our factory has been manufacturing a wide selection of concrete block making machines for more than 26 years. We offer automatic and semi-automatic block production lines for making hollow/solid /paver/curbstone blocks. In addition to these, we are also a leader supplier of block pallets for concrete brick production.
Quality is the core of our company. Advanced inspection equipment and stringent quality control tests make us pass ISO9001:2008 certification.
We implement "Three-Guarantee" installation and debugging for free, focusing on quality and after-sales services. Our company also supplies training services to clients.
Our products have been exported to Africa, South America, Middle East,South Asia,East Europe,Russia and so on.

Product Description

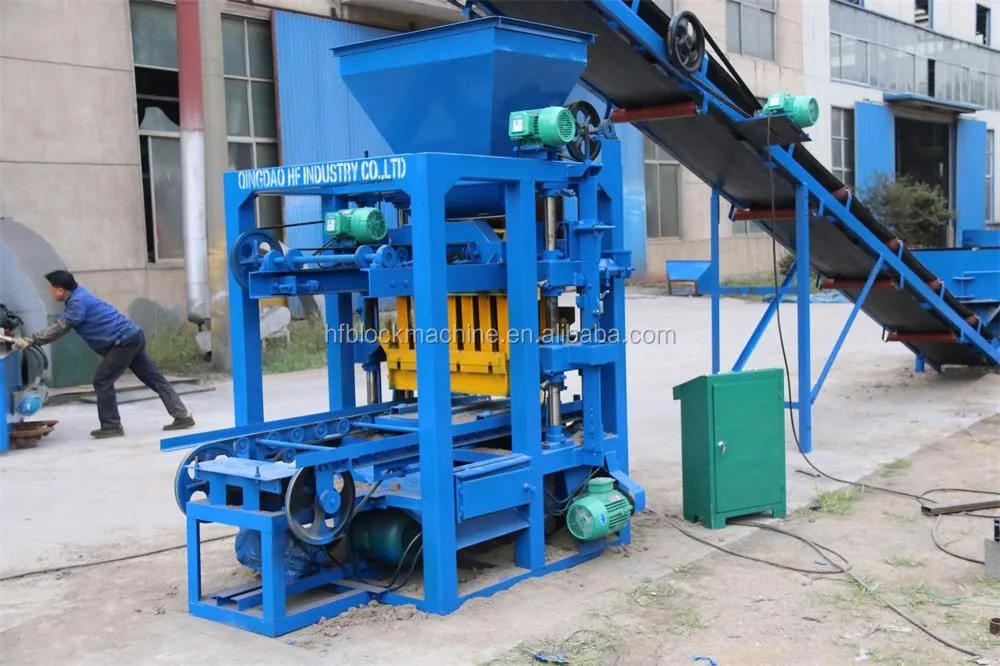

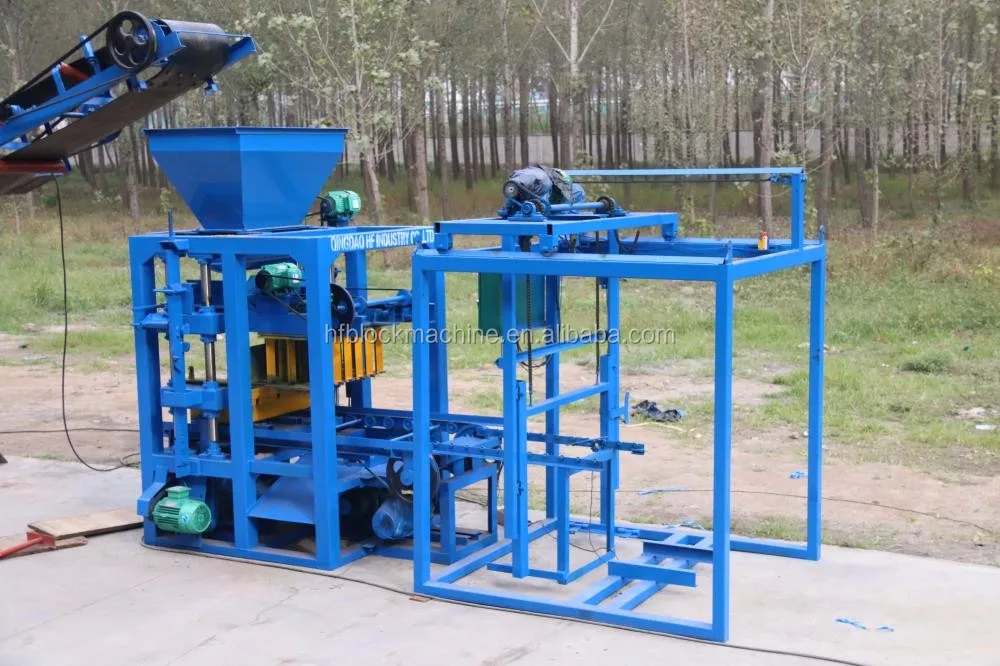

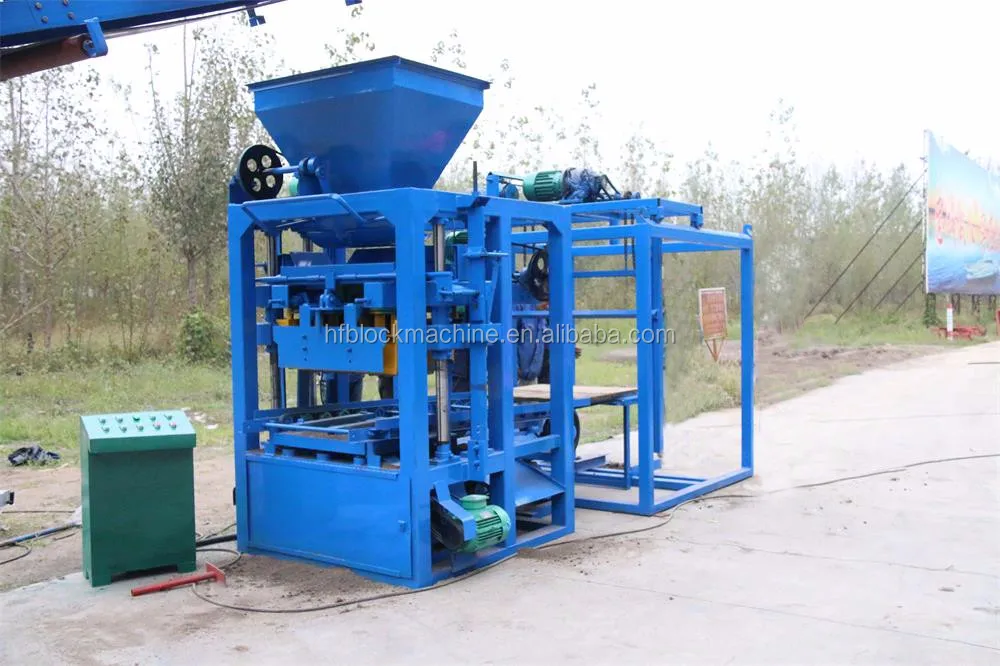

QT4-26 semi automatic cost effective hollow concrete brick making machine

1.QT4-26 brick machine is a kind of semi-automatic type based on the original medium and small-scale block machines by us.
2.The movement of the upper mould and the baiting valve are controlled by motor, greatly save the work labor and improve the production efficiency.
3.Use electrical and mechanical control together to finish machine different movement, and make sure the machine work right and reduce the operation fault, it is easy to operate.
4.Use up and bottom vibration together, quick molding, high density and intensity.
5.Can also work with two machines together, greatly improve the productivity.
6.Can produce various bricks by changing the mould, we can also produce the mould according to customer’s requirement

Main Technical Parameter
Main Vibration Form
Platform Vibration
Forming Cycle
25-30s
Vibration Frequency
4500r/min
Host Machine Power
17.85KW
Pallet Size
880*480mm
Host Machine Weight
2300kg
Overall Dimension
2060*1730*2580mm
Productivity

Hollow Block

size: 400x200x200mm

4 pcs/mold

400-550 pcs/hour

3200-4400 pcs/8hours

Solid Block

size: 240x115x53mm
26 pcs/mold
3120-3600 pcs/hour
24960-28800 pcs/8hours

Pavers

size: 225x112.5x60/80mm
9 pcs/mold
1080-1240 pcs/hour
8640-9920 pcs/8hours

Our Service

1) Send the technicians to carry out the installation and debugging of equipment for the foreign users with compensation. Countries or regions with unstable political situation or in the throes of wartime are not included in our plan.
2) Train the users to command the equipment and guide them for safe production.
3) Explain the routine maintenance of equipment carefully and remove common faults.
4) We are responsible for all the repairs that caused by our quality problems within one year’s warranty. (We will provide one set of spare parts/wear & tear parts free of charge with shipment.)
5) For some countries whose visas are difficult obtained, customers can also send their technicians to our company to receive free guidance and training.
6) Accept suggestions for improvement put forward by customers an earnest way. In accordance with changes of the market, provide the products and services to meet the user’s needs and create value for them.
7) We will make every effort to solve your problems, and your success will add new glory to us..

Packing & Delivery
FAQ

1.What kind of bricks this machine can produce?
A:QT4-26 semi-automatic brick making machine can produce all size of concrete bricks, such as hollow bricks, porous bricks, pavers, solid blocks.

2.How many moulds do you offer?
A:We offer one mould for free. You can buy extra moulds to make different blocks.


3.What about the warranty?
A:12 months

4.What's the payment item?
A:30% deposit prepaid after signing the contract, the rest should be paid before delivery.
We support Alibaba Trade Assurance.
