Quick Details

  • Condition: New
  • Type: Hollow Block Making Machine
  • Brick Raw Material: Concrete
  • Processing: Brick Molding Machine
  • Method: Hydraulic Pressure
  • Automatic: Yes
  • Capacity: 900-1200pcs/hour for 400x200x200mm hollow block
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: HF
  • Model Number: QT5-15 block machine
  • Voltage: Local Voltage
  • Power: 26.5kw
  • Dimension(L*W*H): 5120x1950x2810mm
  • Certification: CE/SGS/ISO9001
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: Optional
  • Cycle time: 15-20s
  • Pallet size: 1100x550mm
  • Weight: 5500kg
  • Raw material: Cement, sand, fly ash,crushed stone
  • Rated pressure: 16MPA
  • Factory area: 1500 square meters
  • Block Type: Hollow block, solid block, color paver, curbstone
  • Mixer: JS500
  • Name: QT5-15 automatic block machine

Packaging & Delivery

Packaging Details 1.Safety export package(iron box) for LCL
2.Nude package for full container.
3.Also according to customer's request.
Delivery Time 25-35 workdays

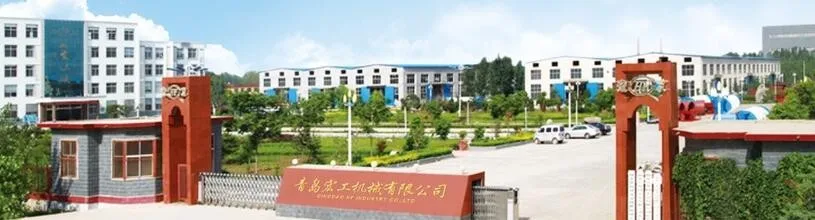

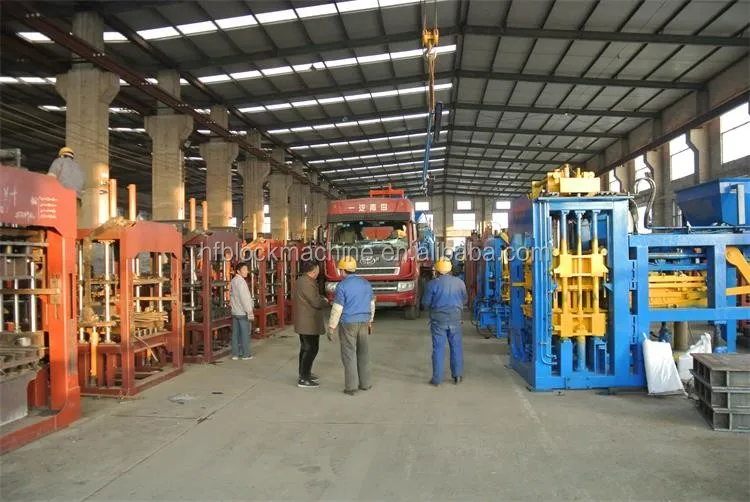

Our Company

Qingdao HF Industry Co., Ltd

Our company has been manufacturing a wide selection of concrete block making machines for more than 26 years. We offer automatic and semi-automatic block production lines for making hollow/solid /paver/curbstone blocks. In addition to these, we are also a leader supplier of block pallets for concrete brick production.
Quality is the core of our company. Advanced inspection equipment and stringent quality control tests make us pass ISO9001:2008 certification.
We implement "Three-Guarantee" installation and debugging for free, focusing on quality and after-sales services. Our company also supplies training services to clients.
Our products have been exported to Africa, South America, Middle East,South Asia,East Europe,Russia and so on

Product Description

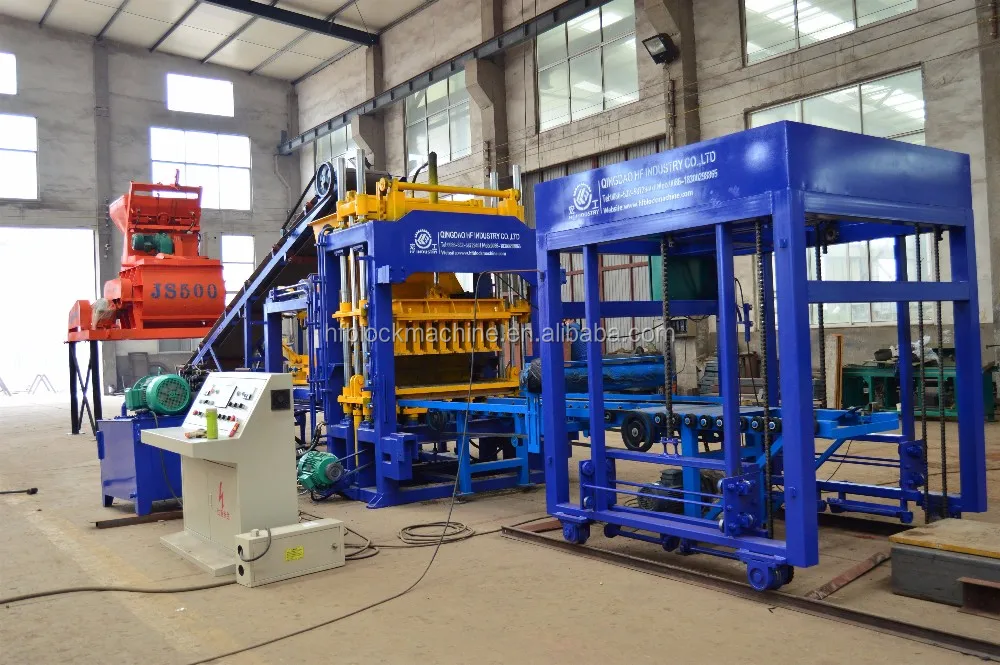

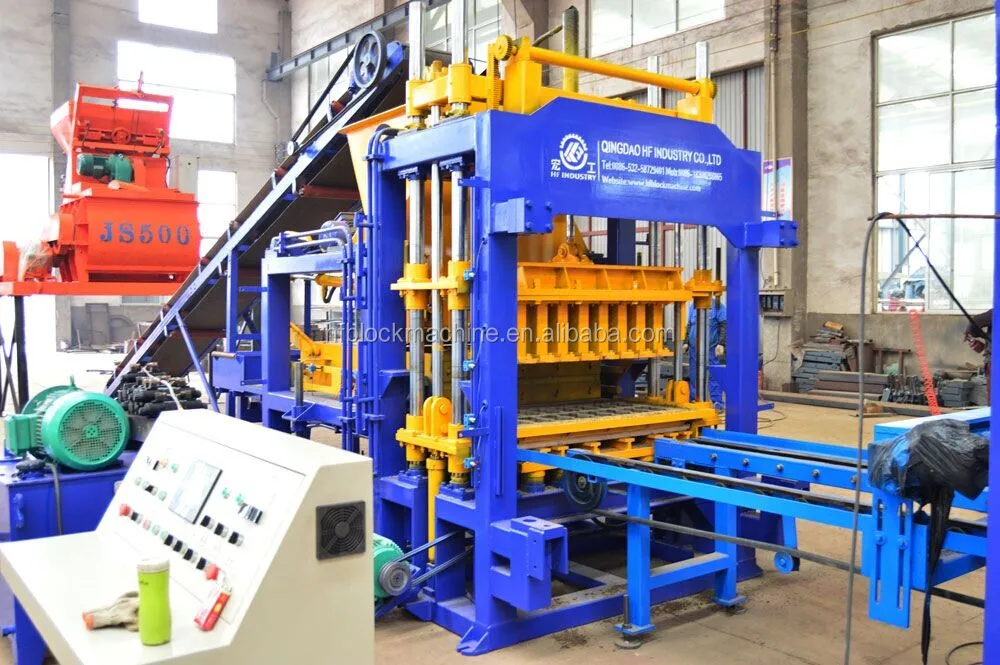

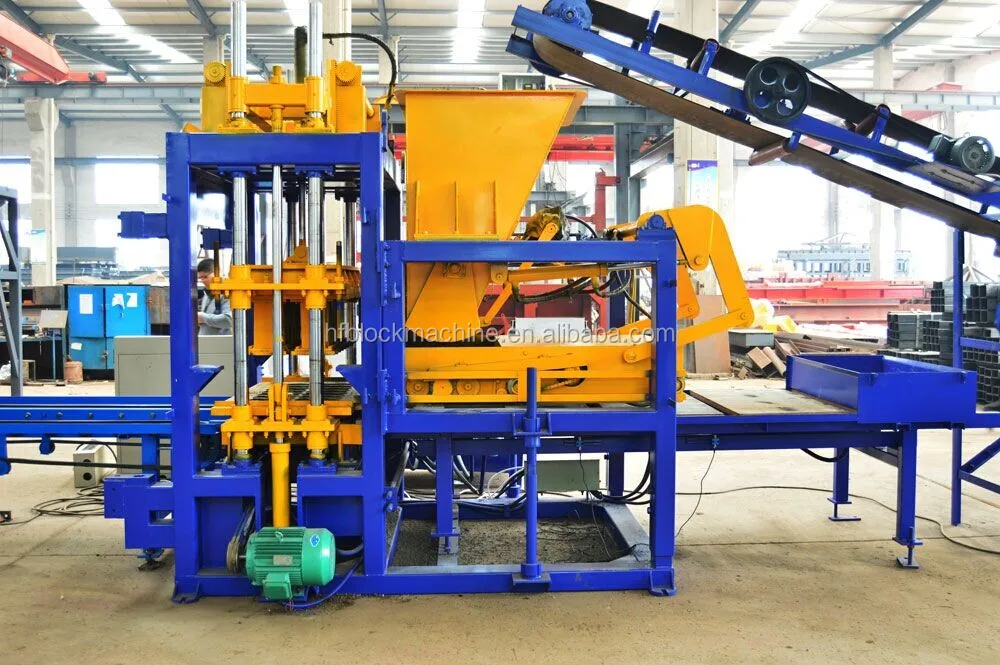

QT5-15 full automatic hollow concrete block making machine

1) The vibration system contains platform vibration and mould vibration, so the products is very close-grained and produced quickly.
2) Machine frame: Maganese steel with China national standard.
3) PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function.
4) The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.

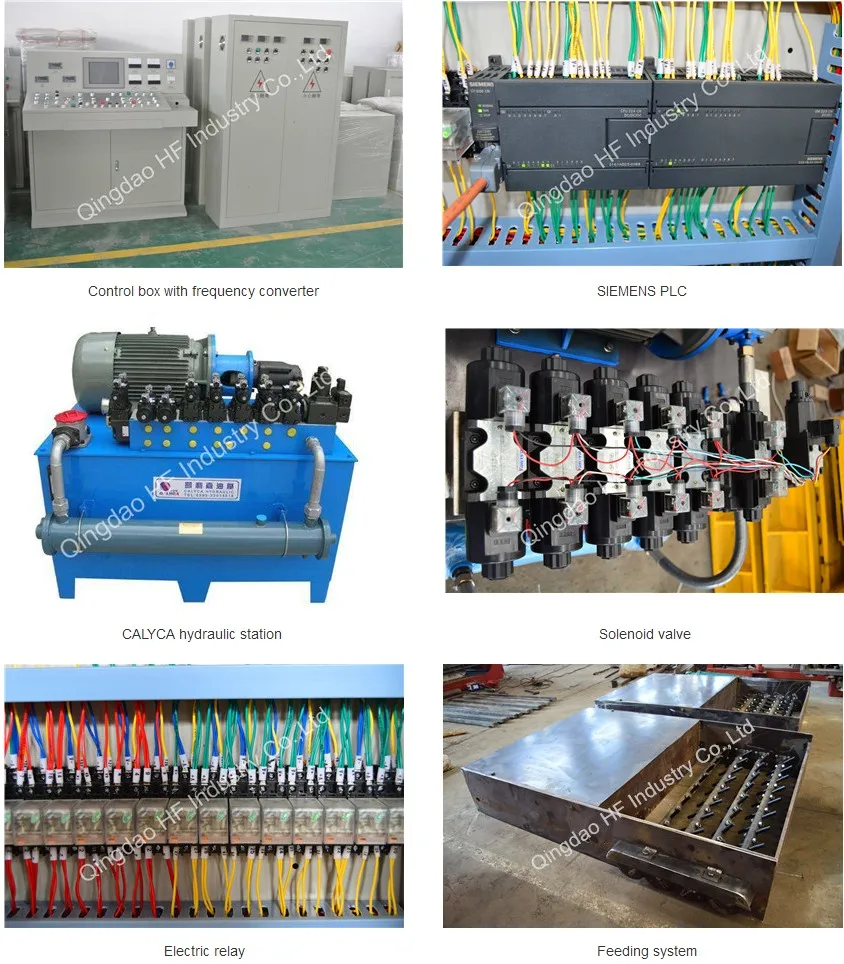

Detailed Images
Technical parameters of QT5-15 full automatic hollow concrete block making machine
Qty/mould
5pcs/mould ( 400x200x200mm hollow block)
Rated pressure
16Mpa
Forming Cycle
15-20s
Vibration form
Platform vibration
Pallet size
1100x500mm
Dimension
5120*1950*2810mm
Weight
5500kg
Raw Materials:
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied products
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones,
grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields:
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.
Certifications

QT5-15 full automatic concrete hollow block making machine

Siemens brand PLC control system / Siemens Motor / Omron Switch / International Standard Steel / Manganese steel mold

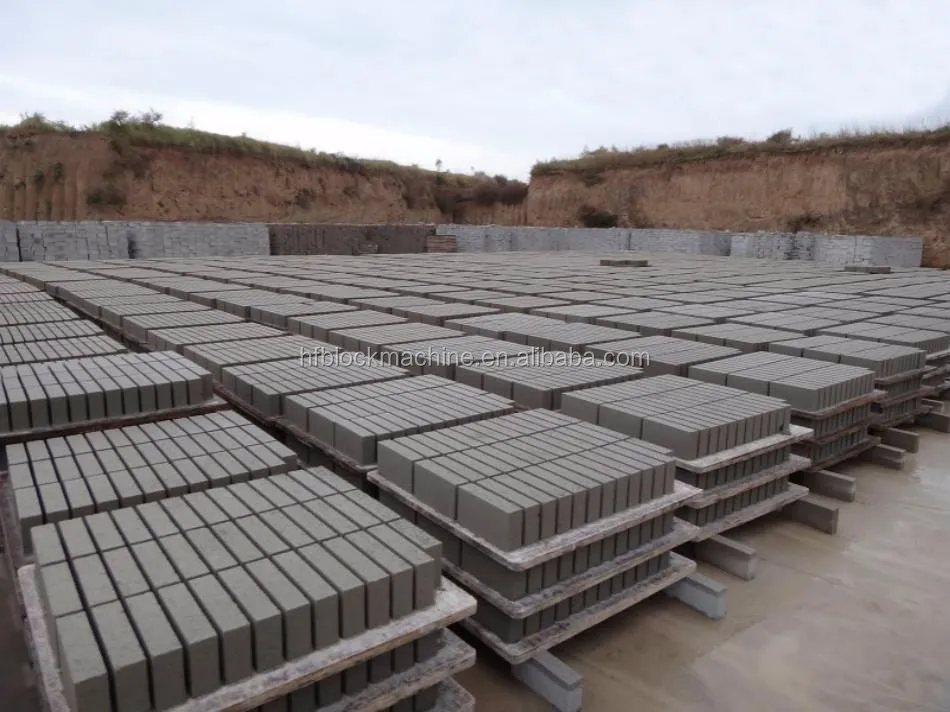

Block Output

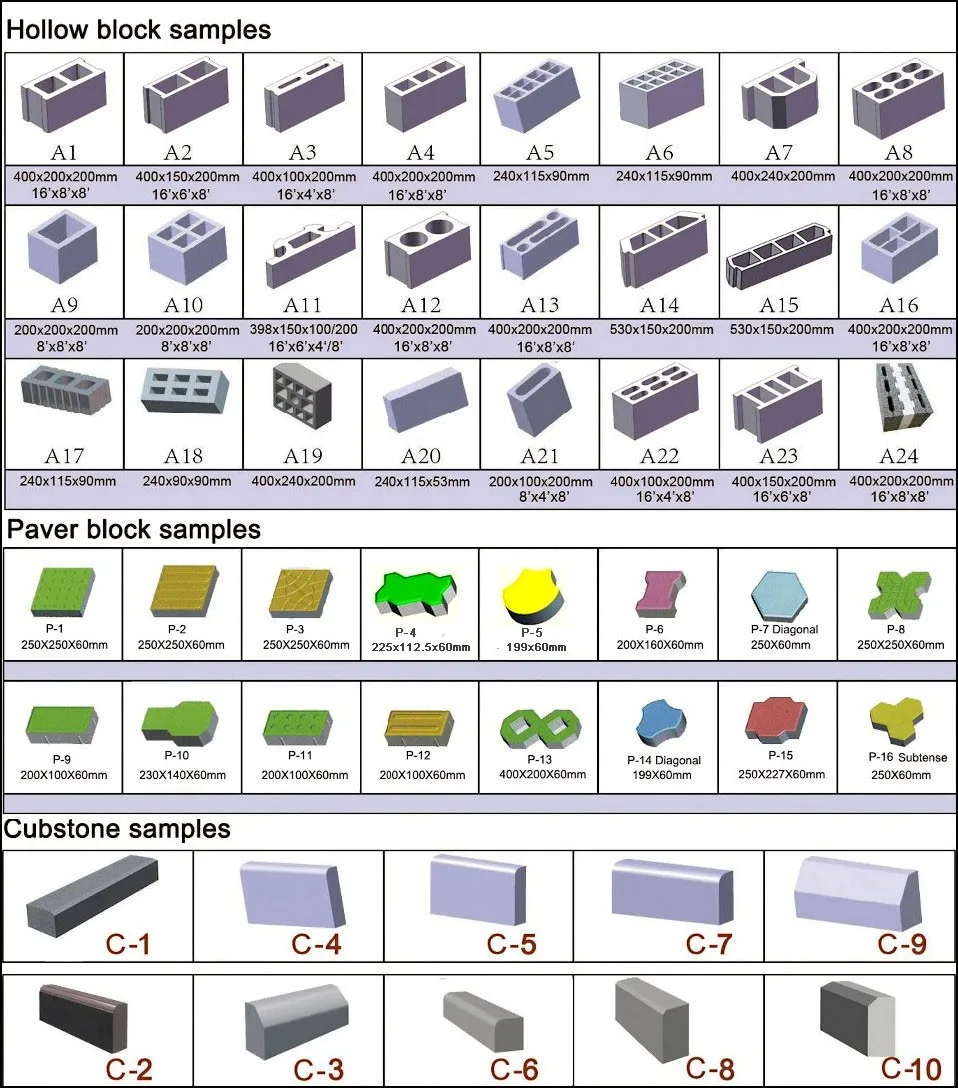

This machine is designed to make many kinds of bricks by changing moulds. Such as hollow blocks, porous blocks, solid blocks, color pavers and curbstone. The material can be crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.

Block Name
Block Size
Qty/mould
Qty/hour
Qty/8hour

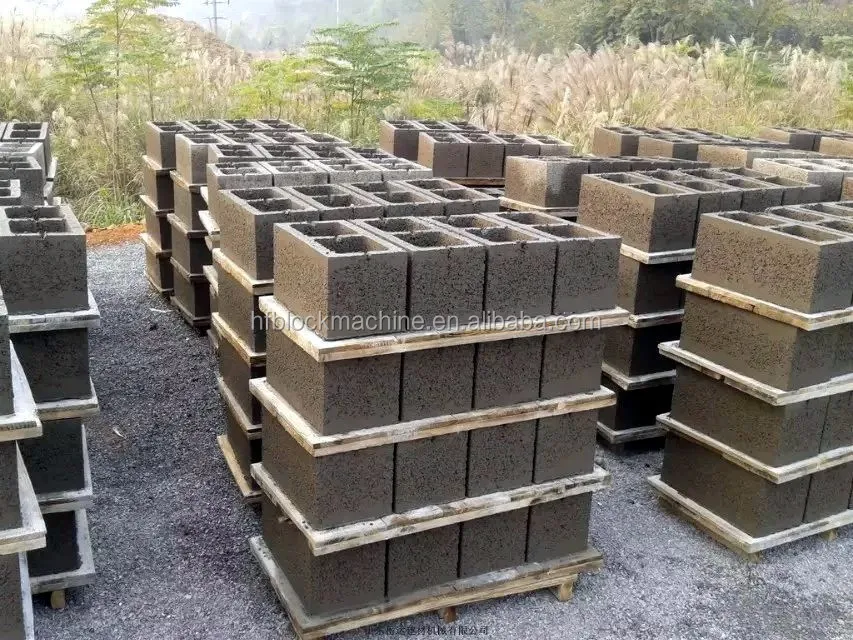

Hollow block
400*200*200mm
5pcs
900-1200pcs
7200-9600pcs
Solid block
240*115*53mm
32pcs
6770-7680pcs
54160-61440pcs
Porous block
240*115*90mm
16pcs
2880-3840pcs
23040-30720pcs

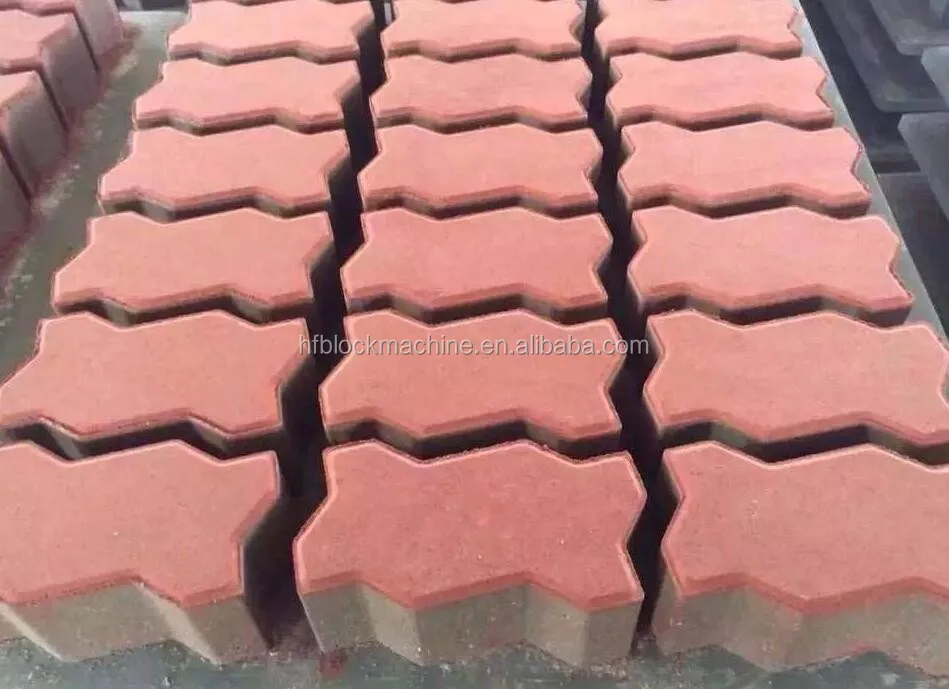

Paver
225*112.5*60mm
16pcs
2300-2880pcs
18400-23000pcs
After Sales Service

1) Send the technicians to carry out the installation and debugging of equipment for the foreign users with compensation.Countries or regions with unstable political situation or in the throes of wartime are not included in our plan.
2) Train the users to command the equipment and guide them for safe production.
3) Explain the routine maintenance of equipment carefully and remove common faults.
4) We are responsible for all the repairs that caused by our quality problems within one year’s warranty. (We will provide one set of spare parts/wear & tear parts free of charge with shipment.)
5) For some countries whose visas are difficult obtained, customers can also send their technicians to our company to receive free guidance and training.
6) Accept suggestions for improvement put forward by customers an earnest way. In accordance with changes of the market, provide the products and services to meet the user’s needs and create value for them.
7) We will make every effort to solve your problems, and your success will add new glory to us.

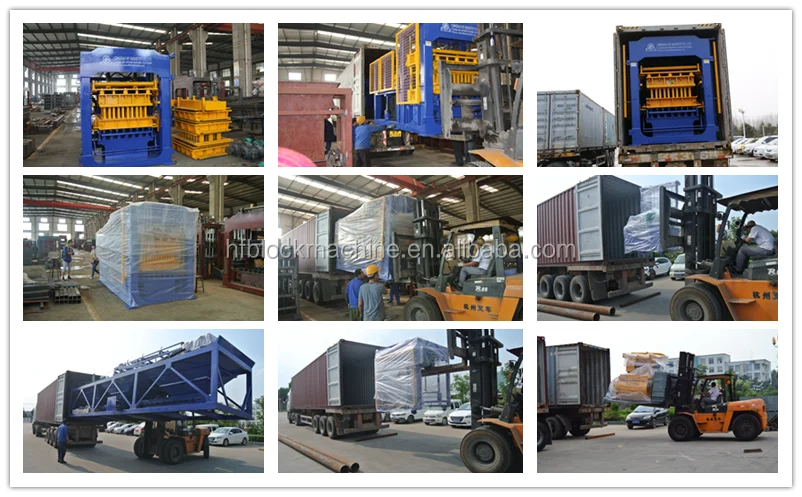

Packing & Delivery
FAQ

01) What is your accept payment method?
A: T/T,L/C, Western-Union, Escrow, Paypal and so on. (30% deposit, and the 70% balance must be paid before shipping )

02) What is your package in shipment?
A: Usually safety export package(iron box) for LCL, Nude package for full container. Also according to customer's request.

03)How long about the delivery time?
A: Within 35 days after received deposit. ex-factory price automatic hollow block machine

04) Is this machine suitable for us?
A: Please inform me your block size and how many blocks you want to produce in one hour. We will recommend you a suitable machine model.

05): How long is your warranty terms?
A: Our Warranty terms is 1 years guarantee
