Quick Details

  • Condition: New
  • Type: Hollow Block Making Machine
  • Brick Raw Material: Concrete
  • Processing: Brick Molding Machine
  • Method: Hydraulic Pressure
  • Automatic: Yes
  • Capacity: 720-960pcs per hour
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: HF
  • Model Number: QT4-16 brick machine
  • Voltage: Local Voltage
  • Power: 17kw
  • Dimension(L*W*H): (L*W*H): 3000*1600*2500mm
  • Certification: CE/SGS/ISO9001
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: Optional
  • Weight: 4.2T
  • Block Type: Hollow Concrete Brick Machine
  • Pallet size: 850*550*30mm
  • Raw material: Cement, sand, fly ash, crushed stone, slag
  • Vibration form: Platform vibration
  • Rated pressure: 16MPA
  • Molding cycle: 15-20s
  • Mould: Heat Treatment
  • Product Name: QT4-16 automatic brick machine

Packaging & Delivery

Packaging Details Usually safety export package(iron box) for LCL, Nude package for full container.
Also according to customer's requirement.
Delivery Time Shipped in 20 days after payment
Our Company

Qingdao HF Industry Co., Ltd

Our factory has been manufacturing a wide selection of concrete block making machines for more than 26 years. We offer automatic and semi-automatic block production lines for making hollow/solid /paver/curbstone blocks. In addition to these, we are also a leader supplier of block pallets for concrete brick production.
Quality is the core of our company. Advanced inspection equipment and stringent quality control tests make us pass ISO9001:2008 certification.
We implement "Three-Guarantee" installation and debugging for free, focusing on quality and after-sales services. Our company also supplies training services to clients.
Our products have been exported to Africa, South America, Middle East,South Asia,East Europe,Russia and so on.

Product Description

High quality behaton paver block making machine QT4-16 is one kind of manual brick making machine in our company . It is mainly used in building , bridges , roads . Can make solid brick , hollow brick by changing the molds . Very popular in the country which need for construction .The machine's price was also very suitable in this area .

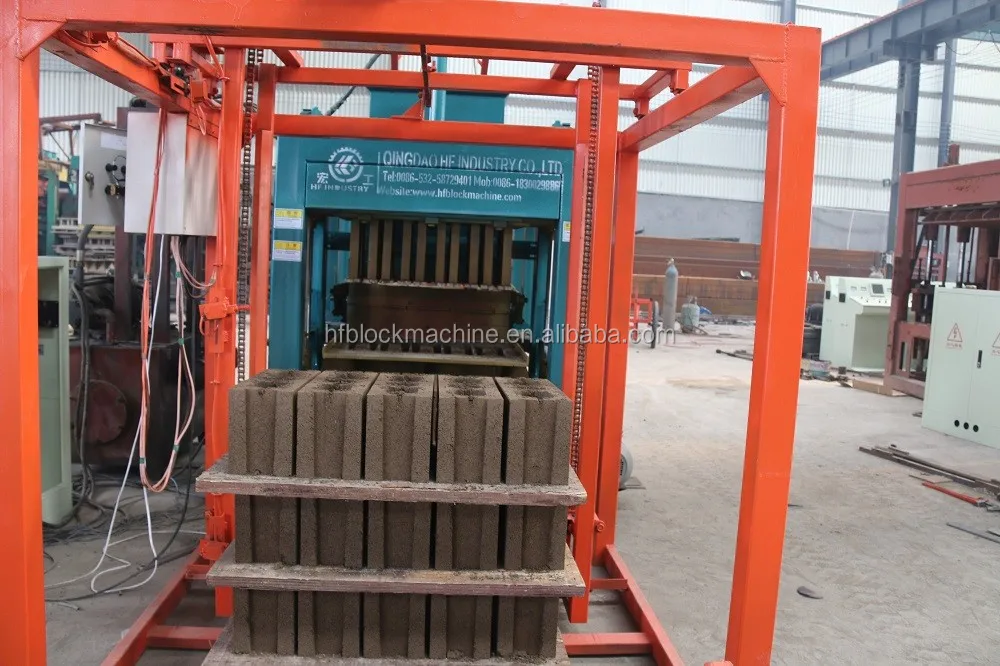

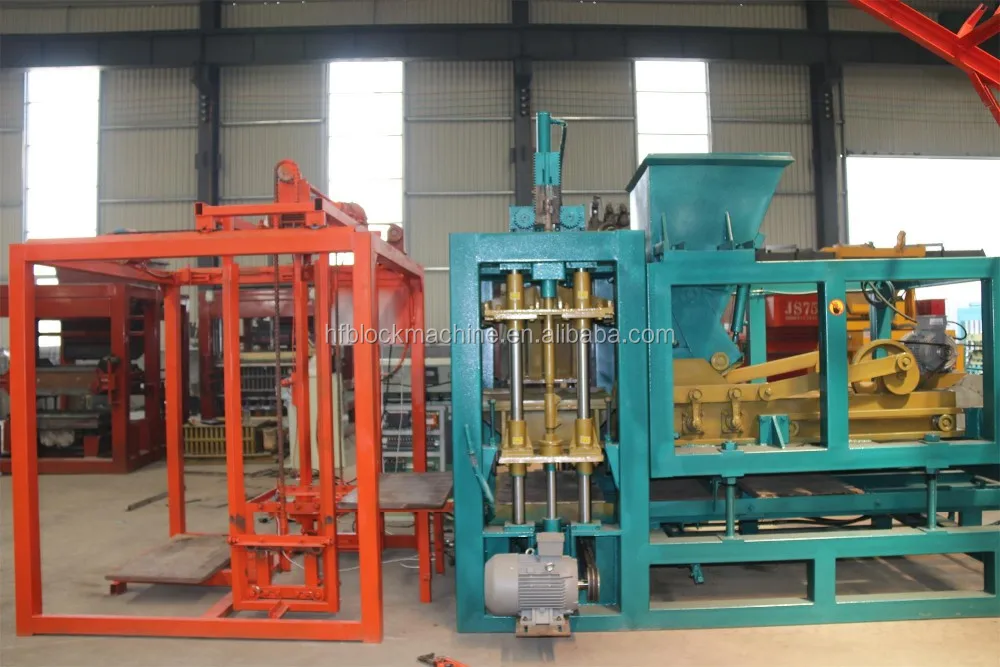

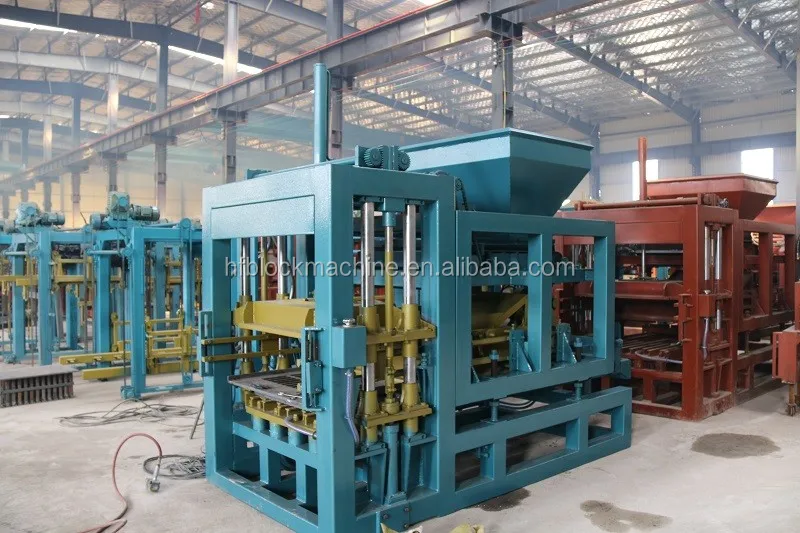

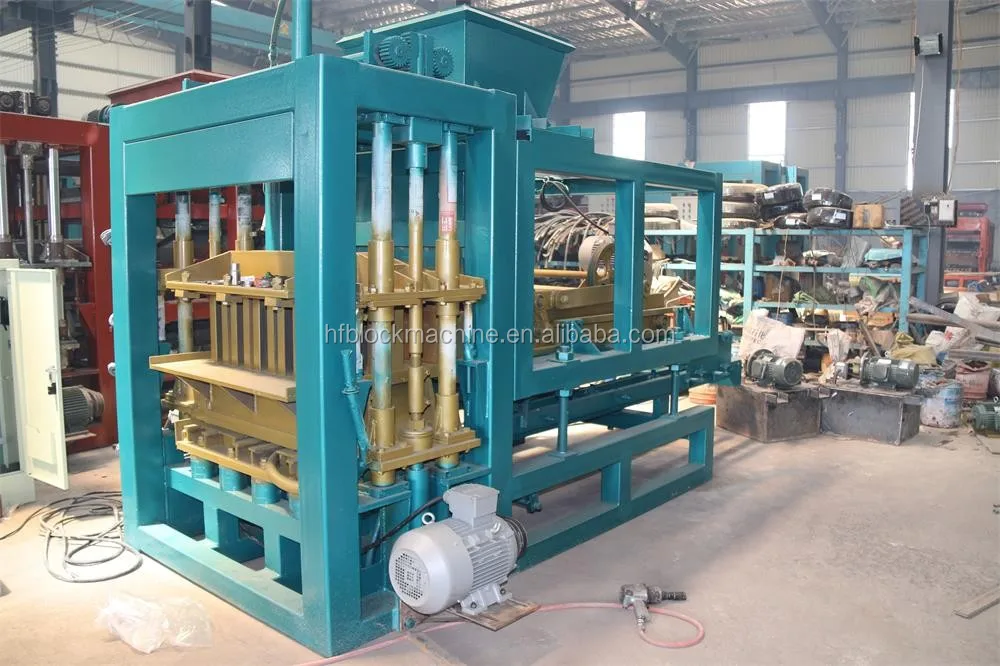

Detailed Images
Technical parameters of QT4-16 hollow block making machine
Qty/mould
4pcs/mould (hollow block 400*200*200mm)
Molding cycle
15-18s
Pallet size
900*550mm
Rated pressure
100 MT / Dia. 300 mm
Main vibration
Platform vibration
Vibration frequency
2800-4500 r/m
Dimension
3000*1600*2500mm
Host machine weight
4000kg
Raw Materials:
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue,gravel, perlite, and other industrial wastes.
Applied Products:
concrete blocks, solid/hollow/cellular masonry products, paving stones with
or without face mix, garden and landscaping products, slabs, edgers,
kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Block Output
Block Name
Size
Qty/ mould
Qty/ hour

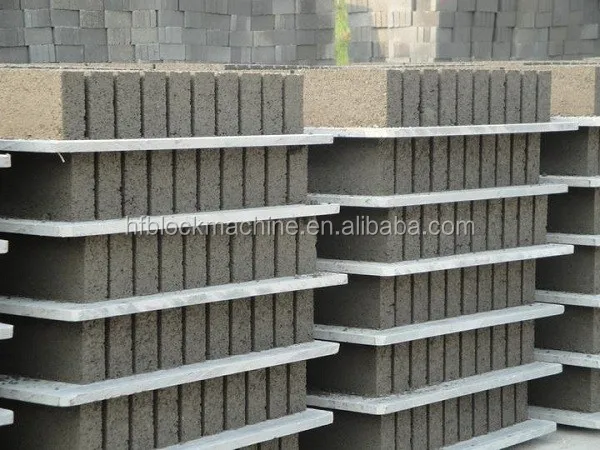

Hollow block
400*200*200mm
4pcs
720-960pcs
Porous block
240*115*90mm
12pcs
2440-2880pcs
Solid block
240*115*53mm
24pcs
4800-5760pcs

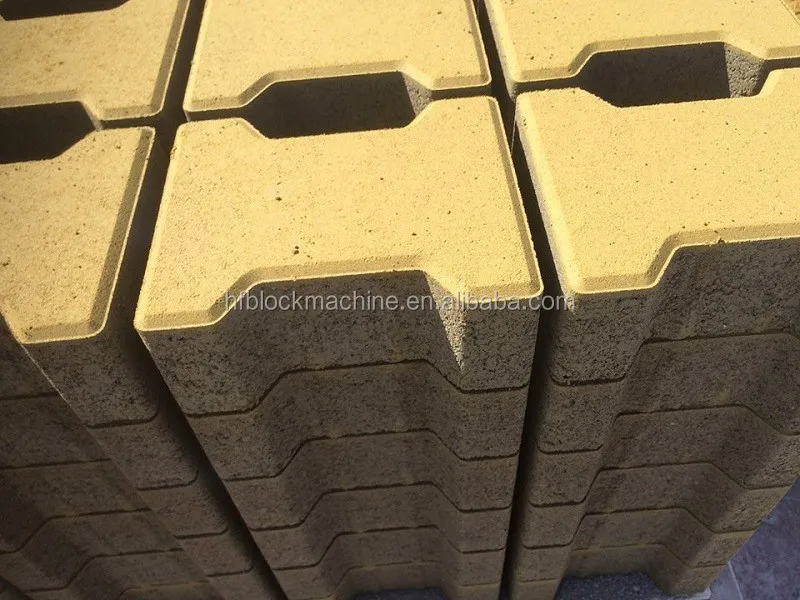

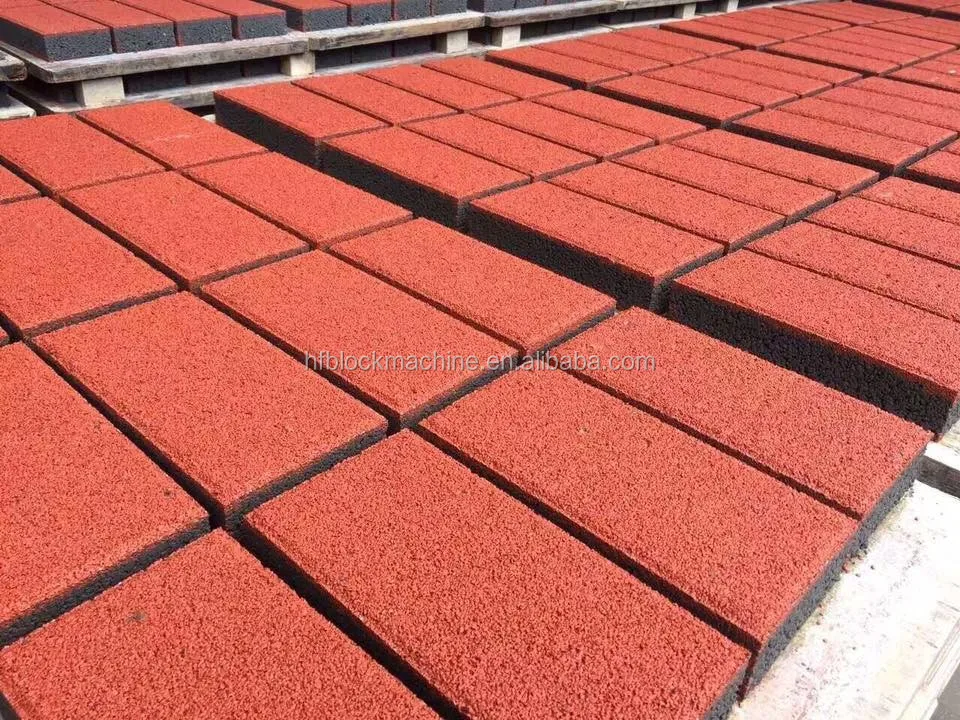

Paver
225*112.5*60mm
12pcs
2440-2880pcs
Our Service

1) Send the technicians to carry out the installation and debugging of equipment for the foreign users with compensation. Countries or regions with unstable political situation or in the throes of wartime are not included in our plan.
2) Train the users to command the equipment and guide them for safe production.
3) Explain the routine maintenance of equipment carefully and remove common faults.
4) We are responsible for all the repairs that caused by our quality problems within one year’s warranty. (We will provide one set of spare parts/wear & tear parts free of charge with shipment.)
5) For some countries whose visas are difficult obtained, customers can also send their technicians to our company to receive free guidance and training.
6) Accept suggestions for improvement put forward by customers an earnest way. In accordance with changes of the market, provide the products and services to meet the user’s needs and create value for them.
7) We will make every effort to solve your problems, and your success will add new glory to us..

FAQ

01) What is your accept payment method?
A: T/T,L/C, Western-Union, Escrow, Paypal and so on. (30% deposit, and the 70% balance must be paid before shipping )

02) What is your package in shipment?
A: Usually safety export package(iron box) for LCL, Nude package for full container. Also according to customer's request.

03)How long about the delivery time?
A: Within 25 days after received deposit.

04): How long is your warranty terms?
A: Our Warranty terms is 1 years guarantee.
